IBK – Aquacul (Cooling water hose)

Description

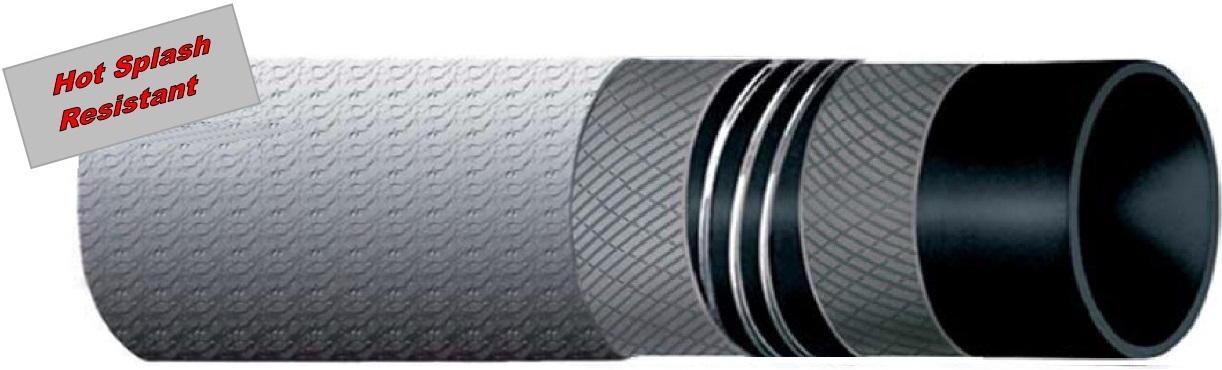

IBK – Cooling Water Hose Type Aquacul

DescriptionTicino MG (englisch)

  • Suction and delivery hose suitable for conveying water and non-corrosive media
  • Normally used in steels mills
  • Not suitable for Flexo-Torsions loads
  • The special outer glass fiber protection withstands splashes of incandescent material and radiation heat up to +400°C

Tube

  • Synthetic rubber, black, smooth

Reinforcement

  • Plies of high strength synthetic textile
  • Embedded steel wire helix

Cover

  • Synthetic rubber, smooth, resistant to abrasion, ozone, weather and high temperatures, covered with a light colored vulcanized glass fiber

–> Alternative: Without vulcanized glass fiber (non-conductive)

Temperature resistance media

  • From – 25°C up to + 80°C
  • Peaks up to + 100°C (depending on media)

Safety Factor

  • > 3-times working

Technical Data

Size Tolerances

 Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307

Internal Diameter
(mm)
Wall Thickness
(mm)
Bending RadiusWorking Pressure
20°C (bar)
VacuumTheoretical Weight
(kg / m)
Length max.
(m)
196.0114*10**-0.90.7040
257.0150*10**-0.90.9040
327.0192*10**-0.91.1040
407.5240*10**-0.91.5040
508.0300*10**-0.92.2540
658.0390*10**-0.92.7040
7510.0450*10**-0.94.2840
10010.0600*10**-0.95.3240
12513.5750*10**-0.99.7540
15014.0900*10**-0.910.8740
20313.51200*10**-0.915.6640

* The bending radius can be reached at a working pressure of > 1 bar

** Hose is also available in other pressure ranges

→ Other sizes and different versions are available on request. Pictures might be different to the original

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here
