Trix 6000 / 5000 (Steamhose)

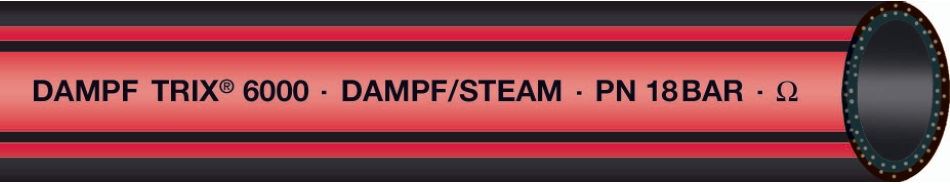

Type 6000

Steam Hose type Trix

Description

DescriptionTrix 6000

  • High-temperature resistant hose for the reliable and safe use at the transportation of hot steam pure saturated steam
  • Application places are the chemical and petrochemical Industry, refineries, building and construction trades, market garden, shipping and other demanding industries
  • Reinforcement: excellent resistant to coorosion by using 2 galvanized reinforcements
  • Optimized life time
  •  Meets the standards DIN EN ISO 6134

Tube

  • EPDM, black, smooth, non-porous, resistant to abrasion and high temperature (Steam, Water, etc.)
  • Resistant to Pop-Corning

Cover

  • EPDM, antistatic (R < 10^6 Ω), resistant to abrasion, UV radiation, ozone and weather

Temperature resistance media

  • Resistant to saturated steam up to + 210°C, for a short time + 220°C at 23 bar (Attention: too heated steam leads to a considerable shortenning of the life time)

Safety Factor

  • Safety Factor 10:1, Burst pressure: 180 bar

–> Steam Hose are also available for the use in individual industries, where previous steam hoses failed under extreme condition, like oil contamination from outside

–> On request you can get more information to our Steam hose type Trix Oil

Technical Data
InchInternal-Ø
(mm)
Wall Thickness
(mm)
Bending radius
(mm)
Working pressure
at 210°C (bar)
Theoretical Weight
(kg / m)
Length max.
(m)
3/8"9.5*6.0100180.40-
1/2"136.0130180.5340
5/8"16*7.0160180.73-
3/4"197.0190180.9040
1"257.5250181.2040
1 1/4"328.0320181.5540
1 1/2"388.0380181.8040
2"509.0500182.6040

* Minimum order quantity 800 Mtr. Pictures might be different to the original.

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here

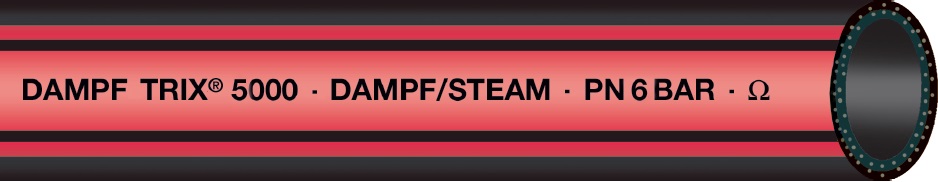

Type 5000

Steam Hose type Trix

Description

DescriptionTrix 5000

  • Flexible tube for the reliable and sure use at the transportation of steam and hot water
  • Application places are the chemical and petrichemical Industry, refineries, bulding and construction trades, market garden, heating up of tank car and other demanding industries
  • Reinforcement: High-strength, temperature and hydrolysis resistant aramid
  • By the high-strength special textile threads there is a considerably higher permanent temperature stability of the deposits than at conventional textile materials
  • Meets the standards DIN EN ISO 6134

Tube

  • EPDM, black, smooth, non-porous, resistant to abrasion and high temperature (Steam, Water, etc.)
  • Resistant to Pop-Corning

Cover

  • EPDM, antistatic (R < 10^6 Ω), resistant to abrasion, UV radiation, ozone and weather

Temperature resistance media

  • Resistant to hot water up to + 120°C
  • and steam up to + 164°C (Attention: too heated steam leads to a considerable shortening of the life time)

Safety Factor

  • Burst pressure: 60 bar

Technical Data
InchInternal-Ø
(mm)
Wall Thickness
(mm)
Bending radius
(mm)
Working pressure
at 164°C (bar)
Theoretical Weight
(kg / m)
Length max.
(m)
1/2"136.013060.5340
3/4"197.019060.7240
1"257.525060.9640

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here
