IBK – Voltocul (Cooling water hose)

[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]

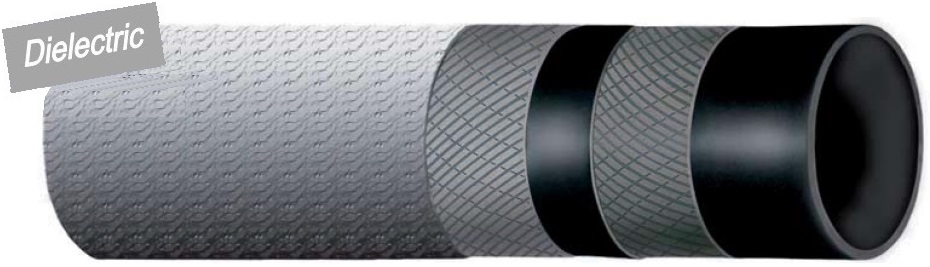

IBK – Cooling Water Hose Type VoltoculCable (englisch)

Description

  • Dielectric rubber hose specifically engineered for the protection and demineralised water cooling of electrical feeder cables for industrial furnaces
  • Normally used in foundries, steel mills and glass industry
  • Self-extinguishing cover according to ASTM C 542
  • The glass fiber cover protects the rubber hose from splashes of incandescent material and radiation heat up to max. of +500°C

Tube

  • NR, black, resistant to abrasion, smooth, dielectric strength > 5000 V/mm

Reinforcement

  • Plies of high strength synthetic textile

Cover

  • Dielectric CR rubber, white, smooth, self-extinguishing, covered with vulcanized glass fiber, clear color

–> Alternative 1: Without glass fiber, dielectric CR rubber, smooth, cloth finish, self-extinguishing, resistant to ozone, weather and oil contact

–> Alternative 2: With vulcanized glass fiber, covered with dielectric CR rubber, black, smooth, cloth finish, self-extinguishing, resistant to ozone, weather and oil contact

Temperature resistance media

  • From – 40°C up to + 90°C

Safety Factor

  • > 3-times working

[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]

Size Tolerances

 Internal Diameter: ISO 1307 / Wall Thickness: (upon offer) / Length: ISO 1307

Internal Diameter
(mm)
Wall Thickness
(mm)
Bending RadiusWorking Pressure
20°C (bar)
VacuumTheoretical Weight
(kg / m)
Length max.
(m)
196.595*10**-0.6540
257.0125*10**-0.8040
328.0160*10**-1.2040
409.0200*10**-1.6540
509.0250*10**-1.9040
6510.0400*10**-2.8040
7510.0450*10**-3.0040
8010.0480*10**-3.2540
10212.0600*10**-5.5020
12715.0800*10**-8.1020
15215.01000*10**-9.9020

* The bending radius can be reached at a working pressure of > 1 bar

** Hose is also available in other pressure ranges

→ Other sizes and different versions are available on request. Pictures might be different to the original

[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here
