Clamping shells

IBK clamp shells made of brass

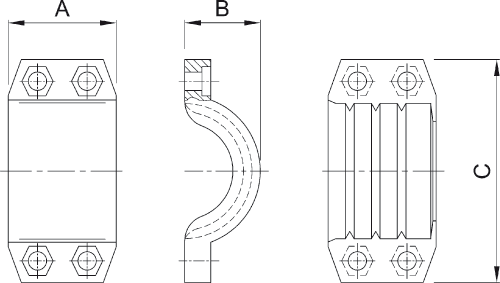

NDDimensionDiameter RangeMaterialWorkmanshipABCBolts + nutsWeight
ca. in mmca. in mmca. in mmca. in mmca. in g
1313 x 522 - 24AluminiumEN14420-35013514 x M6100
13 x 624 - 26BrassIBK-Standard3713534 x M6210
13 x 1032 - 34BrassIBK-Standard4515664 x M6300
1515 x 626 - 28BrassIBK-Standard3916544 x M6180
1919 x 630 - 33AluminiumEN14420-35017624 x M6140
19 x 630 - 33BrassIBK-Standard4017584 x M6220
19 x 834 - 36BrassIBK-Standard4418684 x M8340
19 x 1038 - 41BrassIBK-Standard4518744 x M8350
2525 x 636 - 39AluminiumEN14420-35019694 x M6140
25 x 738 - 41BrassIBK-Standard4820664 x M8310
25 x 1044 - 47BrassIBK-Standard5025794 x M8470
3232 x 643 - 46AluminiumEN14420-35023754 x M6160
32 x 847 - 50AluminiumEN14420-35025794 x M6160
32 x 643 - 46BrassIBK-Standard5023804 x M6430
32 x 847 - 50BrassIBK-Standard5026824 x M6470
32 x 1050 - 53BrassIBK-Standard5227894 x M8510
3838 x 6,550 - 52AluminiumEN14420-35028824 x M6180
38 x 1057 - 60AluminiumEN14420-35030884 x M6180
4040 x 753 - 56AluminiumEN14420-35028844 x M6160
40 x 1058 - 61AluminiumEN14420-35031904 x M6200
40 x 753 - 56BrassIBK-Standard5528934 x M6640
40 x 1058 - 61BrassIBK-Standard50311034 x M8680
5050 x 864 - 67AluminiumEN14420-356331024 x M8260
50 x 1069 - 71AluminiumEN14420-356381084 x M8320
50 x 864 - 67BrassIBK-Standard60311054 x M8740
50 x 1069 - 71BrassIBK-Standard59351124 x M8820
53 x 1072 - 75BrassIBK-Standard60331154 x M10960
6363 x 878 - 82AluminiumEN14420-374431194 x M8460
63 x 878 - 82BrassIBK-Standard64381234 x M81.010
6565 x 1084 - 87BrassIBK-Standard65441324 x M81.380
7575 x 889 - 93AluminiumEN14420-376481344 x M8460
75 x 1094 - 97BrassIBK-Standard68491334 x M81.350
8080 x 1099 - 102BrassIBK-Standard68491404 x M81.240
100100 x 10118 - 122BrassIBK-Standard101611744 x M102.900
125125 x 10143 - 148BrassIBK-Standard140832204 x M107.600
125 x 13149 - 153BrassIBK-Standard141812204 x M107.500
150150 x 10168 - 174BrassIBK-Standard1791002304 x M1211.880
200200 x 10218 - 224BrassIBK-Standard2391212964 x M1219.100
  • Further dimensions available on request
  • Brass clamp shells based on DIN EN 14420-3 (DIN 2817)
  • Standard types also available in stainless steel
