IBK – Brauart (Beverage Hose)

Type D

IBK – Beverage Hose Type Brauart

Description

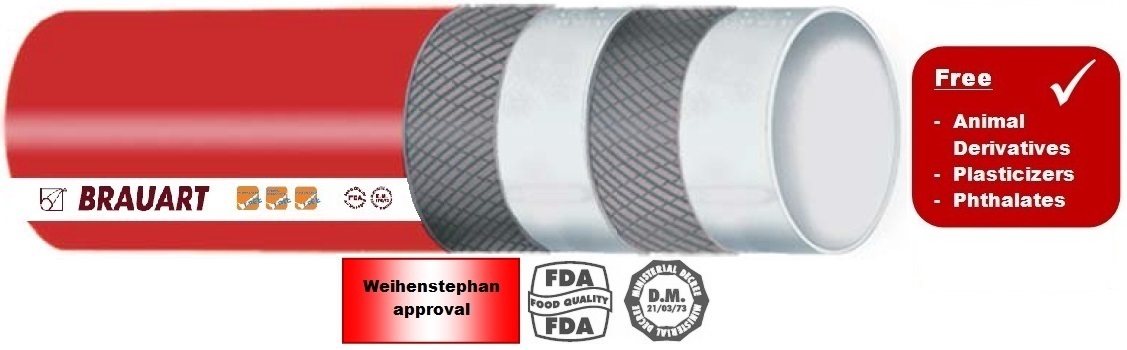

DescriptionBrauart D (englisch)

  • Food hose, specially designed to meet the demanding requirements of the beer industry
  • Suitable for conveying raw, pasteurized and bio- beer, high-quality alcoholic (96% at 20 °C), non-alcoholic drinks and quality wine
  • Suction and delivery hose with a slight suction service
  • Free from plasticizers and animal derivatives, reduces the risk of bacterial growth and contamination of the media conveyed
  • The special structure, make the hose ideal for loading and unloading processes in breweries
  • The composition of its cover provides a good resistance to ageing
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)

Tube

  • BIIR rubber (Code 90FDA), white, mirror-smooth, food quality, odorless and tasteless
  • Compliance: FDA standards and D.M. 21/09/73
  • Approval: Technical University Munich “Weihenstephan

Reinforcement

  • Plies of synthetic textile

Cover

  • CR, red, smooth, cloth finish, self-extinguishing, resistant to abrasion, ozone and weather

Temperature resistance media

  • From – 40°C up to + 120°C
  • Sterilization up to + 130°C for maximum 30 minutes

Safety Factor

  • > 3-times working pressure

Technical Data

Size Tolerances

 Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307

Internal Diameter
(mm)
Wall Thickness
(mm)
Bending RadiusWorking Pressure
20°C (bar)
VacuumTheoretical Weight
(kg / m)
Length max.
(m)
135.08016-0.60.3740
195.012016-0.60.4840
256.015016-0.60.7440
328.020016-0.61.3840
389.024016-0.61.8540
4010.024016-0.62.1040
5010.030016-0.62.7540
6512.040016-0.54.0040
7515.045016-0.45.7040
8015.050016-0.45.9040
10015.060016-0.46.9540
10215.060016-0.47.0040

→ Other sizes and different versions are available on request. Pictures might be different to the original

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here















Type SD

IBK – Beverage Hose Type Brauart

Description

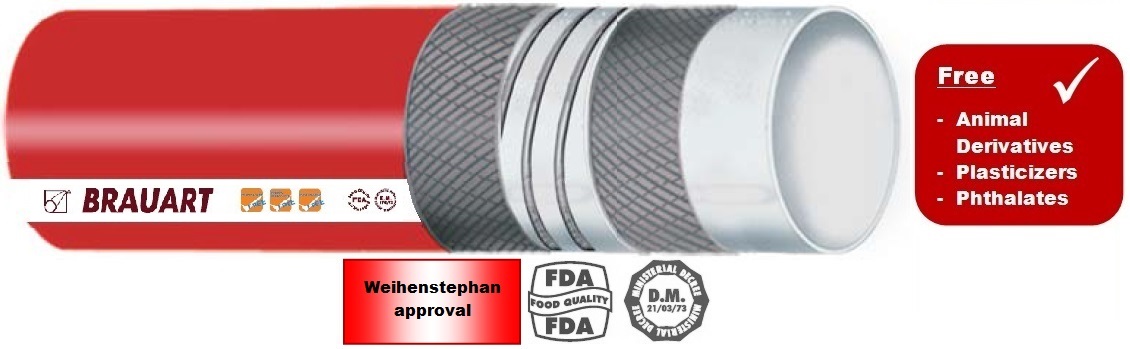

DescriptionBrauart SD (englisch)

  • Food hose, specially designed to meet the demanding requirements of the beer industry
  • Suitable for conveying raw, pasteurized and bio- beer, high-quality alcoholic (96% at 20 °C), non-alcoholic drinks and quality wine
  • Suction and delivery hose with a slight suction service
  • Free from plasticizers and animal derivatives, reduces the risk of bacterial growth and contamination of the media conveyed
  • The special structure, make the hose ideal for loading and unloading processes in breweries
  • The composition of its cover provides a good resistance to ageing
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)

Tube

  • UPE (Ultra High Molecular Weight Polyethylene), white, mirror-smooth
  • Compliance: FDA standards and D.M. 21/09/73
  • Approval: Technical University Munich “Weihenstephan

Reinforcement

  • Plies of synthetic textile
  • Embedded steel helix wire

Cover

  • CR, red, smooth, cloth finish, self-extinguishing, resistant to abrasion, ozone and weather

Temperature resistance media

  • From – 40°C up to + 120°C
  • Sterilization up to + 130°C for maximum 30 minutes

Safety Factor

  • > 3-times working pressure

Technical Data

Size Tolerances

 Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307

Internal Diameter
(mm)
Wall Thickness
(mm)
Bending RadiusWorking Pressure
20°C (bar)
VacuumTheoretical Weight
(kg / m)
Length max.
(m)
196.59515-0.90.6740
256.512515-0.90.8540
327.016015-0.91.2040
387.019015-0.91.5040
507.530015-0.91.9040
659.545015-0.93.2540
7510.053015-0.93.8540
10010.570015-0.95.6040

→ Other sizes and different versions are available on request. Pictures might be different to the original

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here
