IBK – Cleanroom (Hygienic Hose)

Description

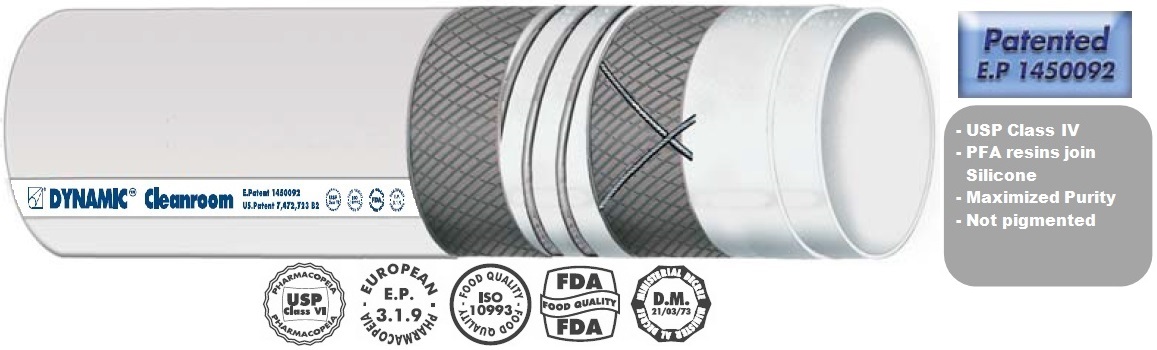

IBK – Hygenic Hose Type Cleanroom

DescriptionCleanroom (englisch)

  • Hygienic hose designed to assure utmost purity during transfer of pharmaceutical, cosmetic, food and chemical products in aseptic areas
  • Specifically engineered to combine the technical benefits of a PFA fluorpolymer resin with the elasticity and thermal resistance of silicone
  • Fluorinated, ultra smooth, inner liner of new generation, built into a high purity structure
  • High flexibility even under low or high temperature conditions

Tube

  • PFA (Alcoxy Polymer), white, mirror-smooth, fully fluorinated
  • Excellent flex-performance (in accordance with ASTM D 2176)
  • Compliance: US Pharmacopeia Class IV, FDA standards and D.M. 21/03/73

Reinforcement

  • Plies of high strength synthetic textile
  • Embedded stainless steel helix wire (AISI 302)
  • Built-in copper wires are available upon request

Cover

  • Translucent silicone rubber (Silicone-3G3362TR), ultra smooth, non-toxic and glossy finish
  • The cover can be easily washed with any cleaning products
  • It does not generate any residuals in comparison with traditional cloth finish
  • It offers the advantage of a low friction rate

Temperature resistance media

  • From – 30°C up to + 150°C (depending on media)
  • Sterilization with steam + 135°C, at 3.5 bar for maximum 30 minutes

Safety Factor

  • > 3-times working pressure

Technical Data

Size Tolerancens

 Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 (+ 0,8mm) / Length: ISO 1307

Internal-Ø
(mm)
Wall Thickness
(mm)
Bending Radius
(mm)
Working Pressure
at 20°C (bar)
VacuumTheoretical Weight
(kg / m)
Length max.
(m)
staticdynamic
135.0456010-0.90.3820
166.0557510-0.90.5120
196.0659010-0.90.5720
256.08514010-0.90.8020
326.012020010-0.91.0020
386.514025010-0.91.3520
518.018030010-0.91.8620
63.58.03203808-0.92.6920
768.03804606-0.93.1820

→ Other sizes and different versions are available on request. Pictures might be different to the original.

Standard Connections

Schlauchanschlüsse eng

Our Rubber hoses are manufactured according to the customers’ request.

Especially the connections play an important role.

Further information for the different types of connections you can get here
